安装

npm install fly-gesture-unlock

快速开始

template

<!-- 这里以 Vue 框架为例，本库并不局限于特定框架 -->
<template>
  <div class="page-container">
    <div
      id="container"
      ref="container"
      style="width: 300px; height: 300px;"
    />
  </div>
</template>

script

<script setup lang="ts">
  import GestureUnlockRenderer, { Anchor } from 'fly-gesture-unlock';
  import { ref, onMounted } from 'vue';

  // 定义额外状态
  type ExtraStatus = never;

  const container = ref();
  const gestureUnlockRenderer = ref<GestureUnlockRenderer<ExtraStatus>>();

  onMounted(() => {
    // 借助提供的辅助函数生成锚点
    const anchorDefines = GestureUnlockRenderer.AnchorMatrixFactory({
      canvasSize: { width: container.value.clientWidth, height: container.value.clientHeight },
      padding: 35,
      matrix: { row: 3, column: 3 },
      anchor: { anchorCircleRadius: 30, centerCircleRadius: 10 },
    });

    gestureUnlockRenderer.value = new GestureUnlockRenderer<ExtraStatus>({
      container: container.value,
      anchorDefines,

      anchorStatusStyles: {
        'not-selected': {
          // 锚点圆的边框宽、边框颜色、填充颜色
          anchorCircleBorderWidth: 1,
          anchorCircleBorderColor: '#3ea1e5',
        },
        'selected': {
          // 锚点圆的边框宽、边框颜色、填充颜色
          anchorCircleBorderWidth: 1.5,
          anchorCircleBorderColor: '#128ce8',
          anchorCircleFillColor: '#ffffff',

          // 中心圆的边框宽、边框颜色、填充颜色
          centerCircleFillColor: '#128ce8'
        },
      },
      lineStatusStyles: {
        'normal': {
          lineColor: '#128ce8',
          lineWidth: 1,
        },
      },
      events: {
        'end': gestureEnd,
      },
    });
  });

  const gestureEnd = (selectedAnchors: Anchor<ExtraStatus>[]) => {
    const anchorIds = selectedAnchors.map(anchor => anchor.id).join('');
    console.log(anchorIds);
  };
</script>

style

<style>
  * {
    padding: 0;
    margin: 0;
  }

  .page-container {
    height: 100vh;
    display: flex;
    align-items: center;
    justify-content: center;
    background-color: #446693;
  }

  #container {
    background-color: #ffffff;
  }
</style>

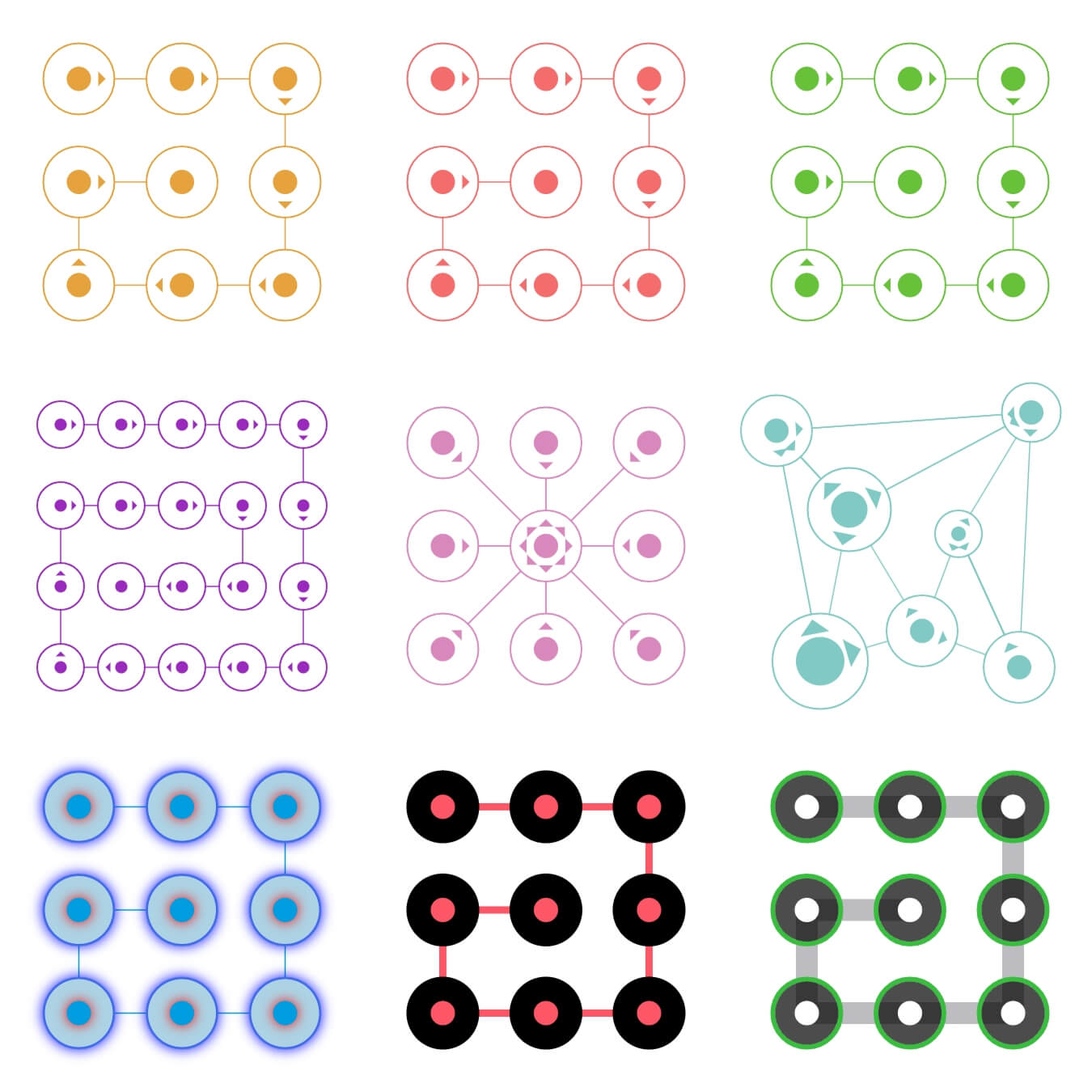

可实现的渲染效果

提示

完整用法源码请直接 clone 项目，安装依赖后，执行 npm run dev 即可看到。（node 版本尽量使用高版本的，我本地的版本是 v18.19.0）
